Overview

Kommunicate is live-chat and chatbots powered customer support software. Kommunicate allows you to add live chat on your website that enables you to chat with your website visitors and customers using a beautiful chat widget.

Installing Kommunicate is fast and easy. Just add a few lines of code in your website and you can start answering your support queries within a few minutes. Kommunicate can also be used with any of Website Builder.

Web chat icon

Web installation

Step 1: Get the customized plugin script from Kommunicate dashboard

Create your account by signing up for Kommunicate. You can signup for free in Kommunicate. If you already have a Kommunicate account, log in to your account and go to the Install section and copy the script.

You can copy the below script and replace required parameters manually.

caution

Use web server to view HTML files as real-time updates will not work if you directly open the HTML file in the browser.

Script

Copy the Javascript code from below and paste it just above the closing of body tag (</body>) on every page you want the chat widget to appear.

<script type="text/javascript">
    (function(d, m){

    /*---------------- Kommunicate settings start ----------------*/

     var kommunicateSettings = {
      "appId": "<APP_ID>",
      "automaticChatOpenOnNavigation": true,
      "popupWidget": true
      /*
      "onInit": function (){
        // paste your code here
      }
      */
      };

    /*----------------- Kommunicate settings end ------------------*/

     var s = document.createElement("script");
      s.type = "text/javascript";
      s.async = true;
      s.src = "https://widget.kommunicate.io/v2/kommunicate.app";
      var h = document.getElementsByTagName("head")[0];
      h.appendChild(s);
      window.kommunicate = m;
      m._globals = kommunicateSettings;
    })(document, window.kommunicate || {});
</script>

Step 2: Add the customized Kommunicate plugin to your website

You can customize the plugin by passing below parameters in the kommunicateSettings object. Visit Settings -> Install section in Kommunicate dashboard to get default values for your account.

Parameters	Type	Descriptions
appId	String	A unique application ID assigned to your Kommunicate account.
conversationTitle	String	All conversations will have this title until the conversation gets assigned to the bot/agent. After conversation assignment, the conversation title will be the name of bot/agent whom the conversation is assigned.
preLeadCollection	Array of objects	This will enable lead collection in chat. Users will be asked to enter the name, email and phone number when they start a conversation.
userId	String	This is your user’s/visitor's user ID. Kommunicate will generate a random ID if this is not defined.
userName	String	This is the display name of the user. Agents will identify users by this display name.
email	String	Email ID of the user. If not online, the user will be notified by fallback emails sent to this email ID.
onInit	Function	This function will be called after the chat plugin is initialized. Here, you can define the actions to be done after the plugin is initialized.
attachment	Boolean	Default: true if you want to disable the attachment option in the chat widget, set this parameter to ‘false’.
emojilibrary	Boolean	Default: false Emoticons library will be available in the chat widget if this parameter is set to true.
locShare	Boolean	Default: false If you want to enable location sharing in the chat widget, set this parameter to true.
openConversationOnNewMessage	Boolean	Default: false If this parameter is set to true, the chat window will be opened whenever a new message comes in the chat widget. For more detail check openConversationOnNewMessage.
automaticChatOpenOnNavigation	Boolean	Default: false If the chat widget is open and the user navigates to some other section in the website or to some other tab, then keep the chat widget open with the current active conversation Note: Kommunicate.startConversation() method and msgTriggerTimeout option won't be compatible with this option.
popupWidget	Boolean	Default: false Setting this parameter to true will change the position of the “chat widget close button” which will now appear on the launcher icon itself, such that your users can open and close the chat widget from the same button. By default, when it is false, the close button appears at the top right corner of the chat widget. Note: The custom launcher icon is not supported if this option is set to true.
voiceInput	Boolean	Default: false set it true to enable the voice input. This feature is only supported in Google chrome versions >= 33.0
voiceOutput	Boolean	Default: false set it true to enable the voice output. Voice output supports the file attachments and location. Also, you have an option to change the default voice output message for the attachment and location here. This feature is only supported in Google chrome versions >= 33.0, Edge, Firefox, Safari, Mozilla, and Opera.
appSettings	Object	This `appSettings` object can be used to override the values set from the dashboard's chat widget section. The values that can be overridden are explained here.
imageLink	String	Default: null - This will add the user's avatar image on the dashboard, pass the image link as a string that can be accessible on the internet (if the image is present in your local system then broken image will be displayed)
contactNumber	String	Default: null - Here you can pass the user's phone number which will be displayed on the dashboard-rightside user details panel, pass the phone number as a string.
quickReplies	String	You need to add the quick replies that need to be shown when clicked on the chat widget.
capturePhoto	Boolean	Default: false set it true to enable the Camera icon. Camera icon appears when you enable, and it will open the camera for mobile devices as soon as you click on the icon. NOTE: Camera of a laptop will not open, the feature will work only for mobile devices.
hidePostFormSubmit	Boolean	Default: false set it true to enable the feature. The form will hide itself post submission.
timeFormat24Hours	Boolean	Default: false set it true to enable the feature. Message timestamp will be shown in 24 Hours format.

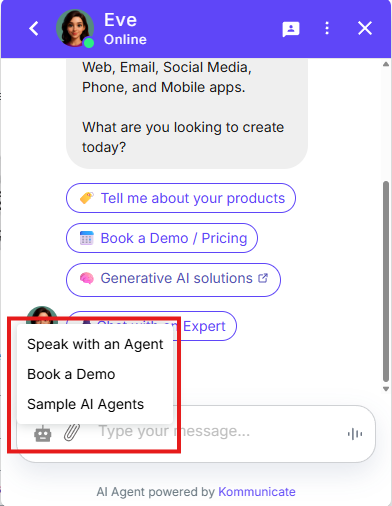

Trigger buttons in Chat widget

Add the parameter “quickReplies” along with the respective quick replies inside the kommunicateSettings. An example script is mentioned below.

(function(d, m){
        var kommunicateSettings =
            {"appId":"APP_ID","popupWidget":true,"automaticChatOpenOnNavigation":true,"quickReplies":["Speak with an Agent","Book a Demo","Sample Bots"]};
        var s = document.createElement("script"); s.type = "text/javascript"; s.async = true;
        s.src = "https://widget.kommunicate.io/v2/kommunicate.app";
        var h = document.getElementsByTagName("head")[0]; h.appendChild(s);
        window.kommunicate = m; m._globals = kommunicateSettings;
    })(document, window.kommunicate || {});

Trigger buttons in Chat widget

Text-to-Speech

To enable Text-to-Speech using dashboard navigate here

Alternatively, set "voiceOutput":true, to enable it. You can also change the Voice rate, Voice Name or Language. Below is the sample code for the same:

(function(d, m){
        var kommunicateSettings = {
            "appId":"APP_ID",
            "popupWidget":true,
            "automaticChatOpenOnNavigation":true,
            "voiceOutput":true,
            "voiceName":"Google Deutsch", // Replace Google Deutsch with the voiceName or an array of voiceNames from Voice Names and Language.
            "voiceRate":1
            "language": "en-US"
        };
        var s = document.createElement("script"); s.type = "text/javascript"; s.async = true;
        s.src = "https://widget.kommunicate.io/v2/kommunicate.app";
        var h = document.getElementsByTagName("head")[0]; h.appendChild(s);
        window.kommunicate = m; m._globals = kommunicateSettings;
    })(document, window.kommunicate || {});

Speech-to-Text

To enable Speech-to-Text using dashboard navigate here

Alternatively, set "voiceInput":true, to enable it. You can also change the voiceInputTimeout and Language. Below is the sample code for the same:

(function(d, m){
        var kommunicateSettings = {
            "appId":"APP_ID",
            "popupWidget":true,
            "automaticChatOpenOnNavigation":true,
            "voiceInput":true,
            "voiceInputTimeout": 5 //in sec
            "language": "en-US"
        };
        var s = document.createElement("script"); s.type = "text/javascript"; s.async = true;
        s.src = "https://widget.kommunicate.io/v2/kommunicate.app";
        var h = document.getElementsByTagName("head")[0]; h.appendChild(s);
        window.kommunicate = m; m._globals = kommunicateSettings;
    })(document, window.kommunicate || {});

Note: ""voiceInputTimeout": 5 " it is only used for Safari Browsers in Mac OS and iOS

Below are the details about the supported parameters for Speech-to-Text and Text-to-Speech:

Parameters	Type	Description
appId	String	A unique application ID assigned to your Kommunicate account. You will get the appId from Install section
voiceOutput	Boolean	Default: false Set it true to enable the voice output
voiceInput	Boolean	Default: false Set it true to enable the voice input
voiceName	String OR Array	To set the voiceName to different languages Use any of the "voiceName" from the below table list. Please choose the voiceName based on the browser.
language	String	The lang property sets the language of the bot. Example: "language": "en-US"
voiceRate	Number	The rate property sets the speed at which the bot will be spoken at. Default value: 1 Any number between 0 to 10

Note: If you want to pass multiple voices for different operating systems and web browsers, you can pass the voice names in an array:

"voiceName":["Victoria", "Google US English", "Microsoft Aria Online (Natural) - English (United States)", "Samantha"],

Voice Names and Language:

Get the complete list of available Voice Name and Language for different operating systems and web browsers :

Mac & iOS voice list

Windows voice list

Installation with Frameworks

React JS

There are two ways to integrate the Kommunicate chat widget into React website or project.

Method 1: By installing Kommunicate chat widget package using npm command

Use the below npm command to install Kommunicate chat widget package

npm i @kommunicate/kommunicate-chatbot-plugin

After installing package, use the below code to import it in index.js file

import Kommunicate from "@kommunicate/kommunicate-chatbot-plugin";

Now, add the below code in index.js file

 Kommunicate.init("APP_ID", {
  automaticChatOpenOnNavigation: true,
  popupWidget: true
});

Add your APP_ID. You can get your APP_ID here

You can use Below Sanbox for Testing and checking the configuraion:

Method 2: By creating Kommunicate Chat Component

Create new file chat.js inside src folder
In chat.js file and create Component named KommunicateChat
Add the below code inside componentDidMount

(function(d, m){
        var kommunicateSettings = {"appId":"<APP_ID>","popupWidget":true,"automaticChatOpenOnNavigation":true};
        var s = document.createElement("script"); s.type = "text/javascript"; s.async = true;
        s.src = "https://widget.kommunicate.io/v2/kommunicate.app";
        var h = document.getElementsByTagName("head")[0]; h.appendChild(s);
        window.kommunicate = m; m._globals = kommunicateSettings;
      })(document, window.kommunicate || {});

Add your APP_ID. You can get your APP_ID here

ReactJS

Now, import KommunicateChat Component in App.js file

ReactJS

Dialogflow Chatbot integration with React JS

Note: If any Kommunicate functions need to be executed, the 'window' object must be declared before the function. Because the 'window' is a global object in the browser environment and allows the Kommunicate script file to be accessed from the react component.

Example: To launch conversation after the chat widget is loaded, use window.Kommunicate.launchConversation();

Angular JS

Install chatbot in the Angular component

Kommunicate's chatbot is compatible with Angular framwork.

To install the chatbot, open the Kommunicate Dashboard and navigate to Settings -> Install -> Web section. Copy the JavaScript code to be added the chatbot in angular application. Paste the javascript code into the app.component.ts file inside ngOnInit().

Note: You might need to replace window with (windows as any).

The code of the component should look like this

@Component({
  selector: "app-root",
  templateUrl: "./app.component.html",
  styleUrls: ["./app.component.scss"],
})
export class AppComponent {
  title = "my first app";
  ngOnInit() {

    //----------- chatbot's code --------------//
    (function (d, m) {
      var kommunicateSettings = {
        appId: "<YOUR APP-ID>",
        popupWidget: true,
        automaticChatOpenOnNavigation: true,
      };
      var s = document.createElement("script");
      s.type = "text/javascript";
      s.async = true;
      s.src = "https://widget.kommunicate.io/v2/kommunicate.app";
      var h = document.getElementsByTagName("head")[0];
      h.appendChild(s);
      (window as any).kommunicate = m;
      m._globals = kommunicateSettings;
    })(document, (window as any).kommunicate || {});
    //----------- chatbot's code end --------------//

  }
}

If you run the browser, you should see a chat widget screen pop up and that means your chatbot is ready.

AngularJS

Example Angular project

Dialogflow Chatbot integration with Angular JS

Vue JS

To install the chat widget in the Vue.js component, either create a new component file or add the Kommunicate install code in your existing component file. A simple and effective way to solve this is by adding your external script into the ‘Vue mounted()’ section of your component.

Run any code editor and open your workspace folder to further navigate to the component file.

Note: Vue Components are one of the important features of Vue.js that create custom elements, which can be reused in HTML.

To install the chatbot, open Kommunicate and navigate to Dashboard →Settings. Click on Install under the Configuration section. Copy the code and add it to your website or application.

Paste the javascript code into the component file inside the script tag. The code of the component should look like this:

<script>
export default {
    methods: {
    },
    mounted (){
      (function(d, m){
        var kommunicateSettings = {"appId":"YOUR_APP_ID","popupWidget":true,"automaticChatOpenOnNavigation":true};
        var s = document.createElement("script"); s.type = "text/javascript"; s.async = true;
        s.src = "https://widget.kommunicate.io/v2/kommunicate.app";
        var h = document.getElementsByTagName("head")[0]; h.appendChild(s);
        window.kommunicate = m; m._globals = kommunicateSettings;
      })(document, window.kommunicate || {});
    },
    data: function(){
    }
}
</script>

Note: Make sure you replace “YOUR_APP_ID” with your APP Id provided in the install section.

Example Vue.js project

Dialogflow Chatbot integration with Vue JS

Install Chat widget in iFrame

Add the following iframe in the HTML body of your application

<iframe
            style="border: none;"
            height="600px"
            width="400px"
            src="https://widget.kommunicate.io/chat?appId=YOUR_APP_ID"
            allow="microphone; geolocation;"
        >
</iframe>

Note: Make sure you replace “YOUR_APP_ID” with your APP Id provided in the install section - https://dashboard.kommunicate.io/settings/install

An example is provided below.

Chatwidget iFrame

To assign the conversation to a particular team and agent, pass teamId and agentIds parameters.

<iframe
        style="border: none;"
        height="600px"
        width="400px"  src="https://widget.kommunicate.io/chatappId=YOUR_APP_ID&teamId=685828&agentIds=anuj%2Bop260623@kommunicate.io,pooja.poojagc@gmail.com&assignee=anuj%2Bop260623%40kommunicate.io" allow="microphone; geolocation;"
    >
</iframe>

Parameters:

teamId: The ID of the team to assign the conversation to,

agentIds: Comma-separated list of agent email addresses,

assignee: Email address of the default assignee.

Once the iframe loads it automatically focuses on the text area which causes the page to scroll up, to avoid this use the parameter noFocus=true in your iframe URL as shown below.

<iframe
            style="border: none;"
            height="600px"
            width="400px"
            src="https://widget.kommunicate.io/chat?appId=YOUR_APP_ID&noFocus=true"
            allow="microphone; geolocation;"
        >
</iframe>

Install on website builders or Content Management Systems (CMS)

We have written step by step instructions if you are using website builder tools or CMS for your website:
